Supported materials

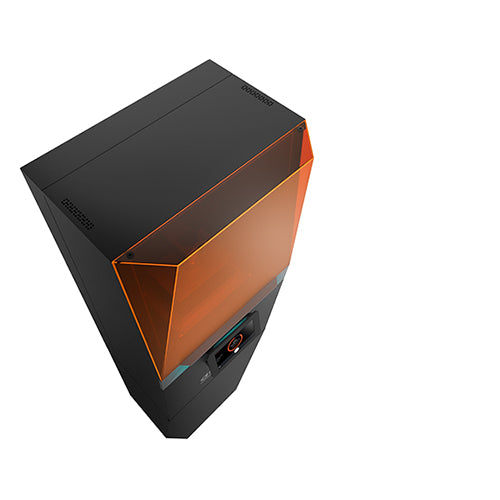

DLP Station 5-405
Print volume: 192 x 108 x 450 mm
Print speed: up to 130mm per hour
Projector resolution: Full HD 1920x1080 px
With its custom-built, high-power 405nm light engine and 100-micron x,y resolution optics, the DLP Station 5-405 delivers new levels of speed, precision, and consistency. Its redesigned industrial-grade consumables offer a fast and convenient workflow. Add to that the truly open platform for third-party resins, allowing us to advise you on material options that best suit your application and requirements, and the DLP Station 5-405 is a cutting-edge machine that offers both exceptional value and cost efficiency.
DLP Station 5-405 EXZ
Print volume: 192 x 108 x 450 mm
Print speed: up to 150mm per hour
Projector resolution: 2K Ultra HD
The DLP Station 5-405 EXZ is now available with our powerful 405nm lightweight engine module. In line with our vision of offering the most affordable and fully customizable open-platform DLP 3D printers, the DLP Station 5-405 EXZ allows you to use any available DLP resin in the 405nm range, thanks to atum3D's proprietary open resin platform. These exceptional features make the DLP Station 5-405 EXZ perfect for many applications, including footwear, mold, and insert manufacturing.

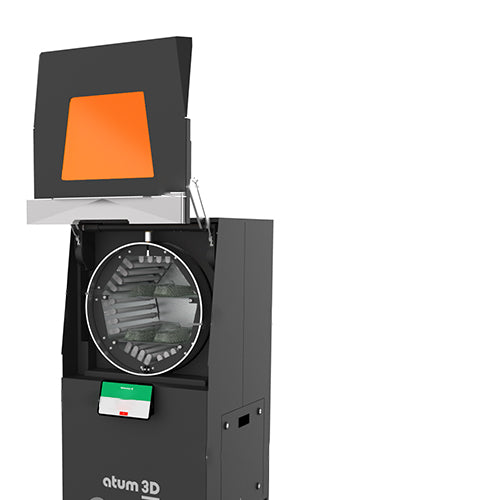

Curing Station
Technologies: UV light, Radiated heat, Vacuum
Chamber volume: 30 liters
Chamber dimensions (WxDxH): 282 x 395 x 275 mm
Our industrial-grade curing station combines powerful UV light and radiant heat integrated into a vacuum chamber for exceptional performance. The ability to post-cure in an oxygen-free environment significantly increases speed and helps optimize both the accuracy and final material properties.
