Descrizione
Flexible resin with superior elongation and softness (Shore 40 A)

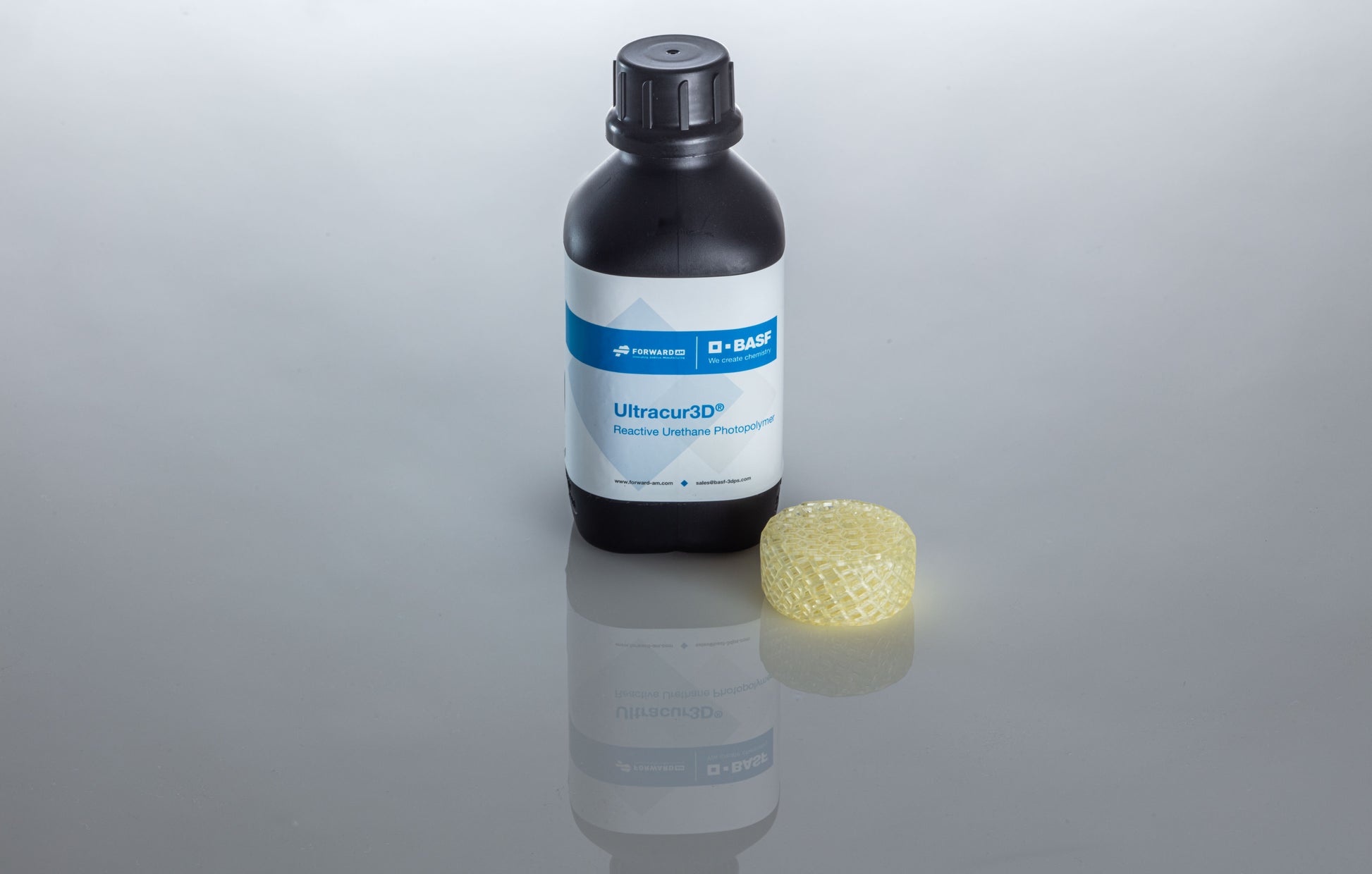

Ultracur3D® FL 300 from Forward AM is a well-balanced, reactive urethane photopolymer for flexible applications that offers exceptional torsional flexibility with high tear strength. It provides very high softness (Shore 40A), superior elongation at break, and consistent rebound.
The advantages in brief
- Very low hardness (Shore 40 A)
- Higher elongation at break
Example applications
- Footwear
- Prototyping
- Energy damping
- Padded padding
- Flexible grip
Material properties
- Rebound Resilience: 16%
- Tear resistance (Graves): 9 N/mm
- Elongation at break: 245%
- Hardness: 40 A
Ultracur3D® FL 300 rebound behavior

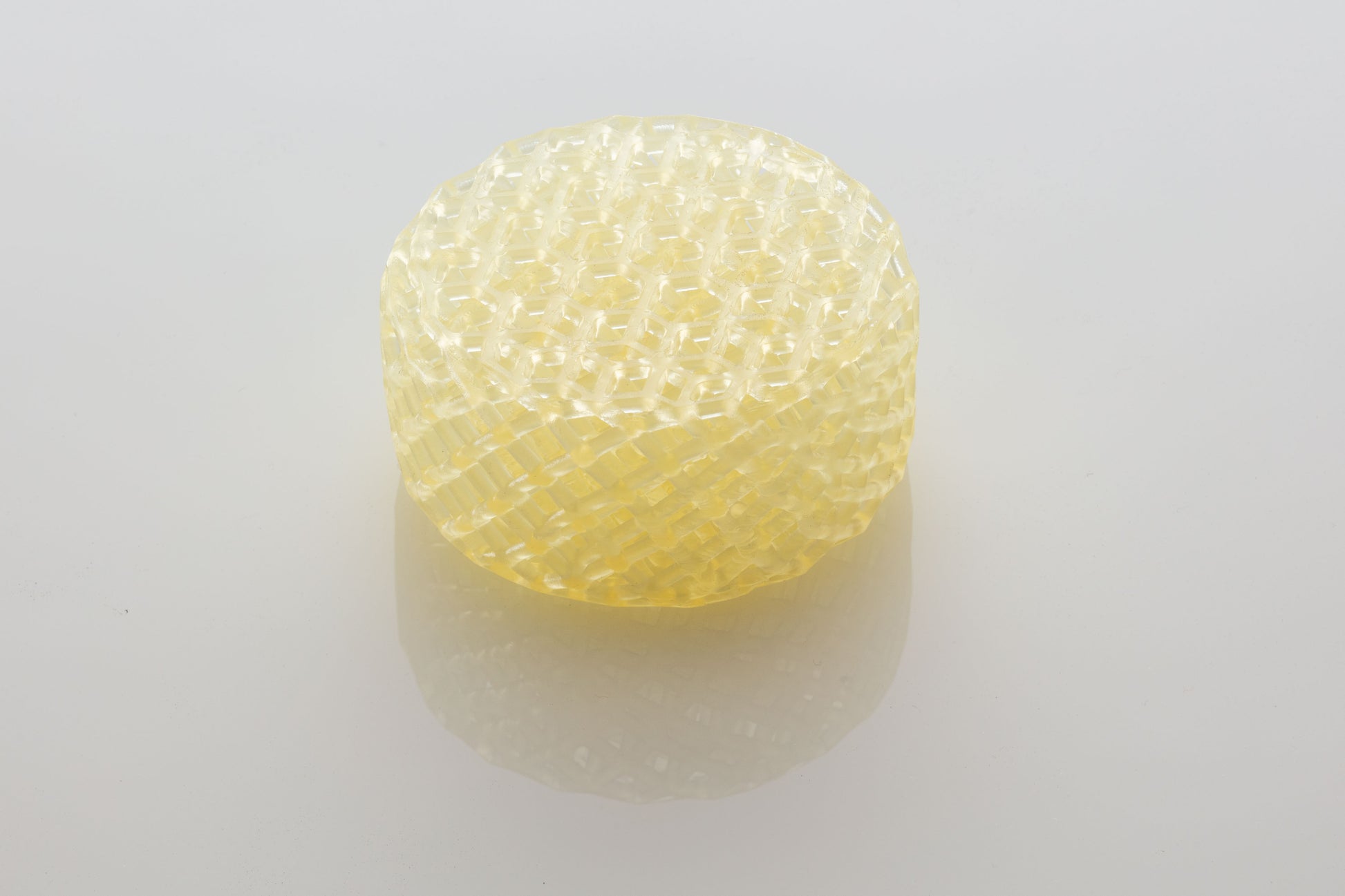

- High-speed video of a drop tower test of a steel ball (~130 g) onto a lattice structure (60x60x22 mm³) from a height of 0.95 m
- The Ultrasim® material model can also be used to simulate flexible materials
- Depending on the energy dissipation of the material, the Ultrasim® material model can be adjusted to reflect the correct rebound behavior
