Descrizione
Flexible resin with excellent tactile sensation and low hardness (Shore 60 A)

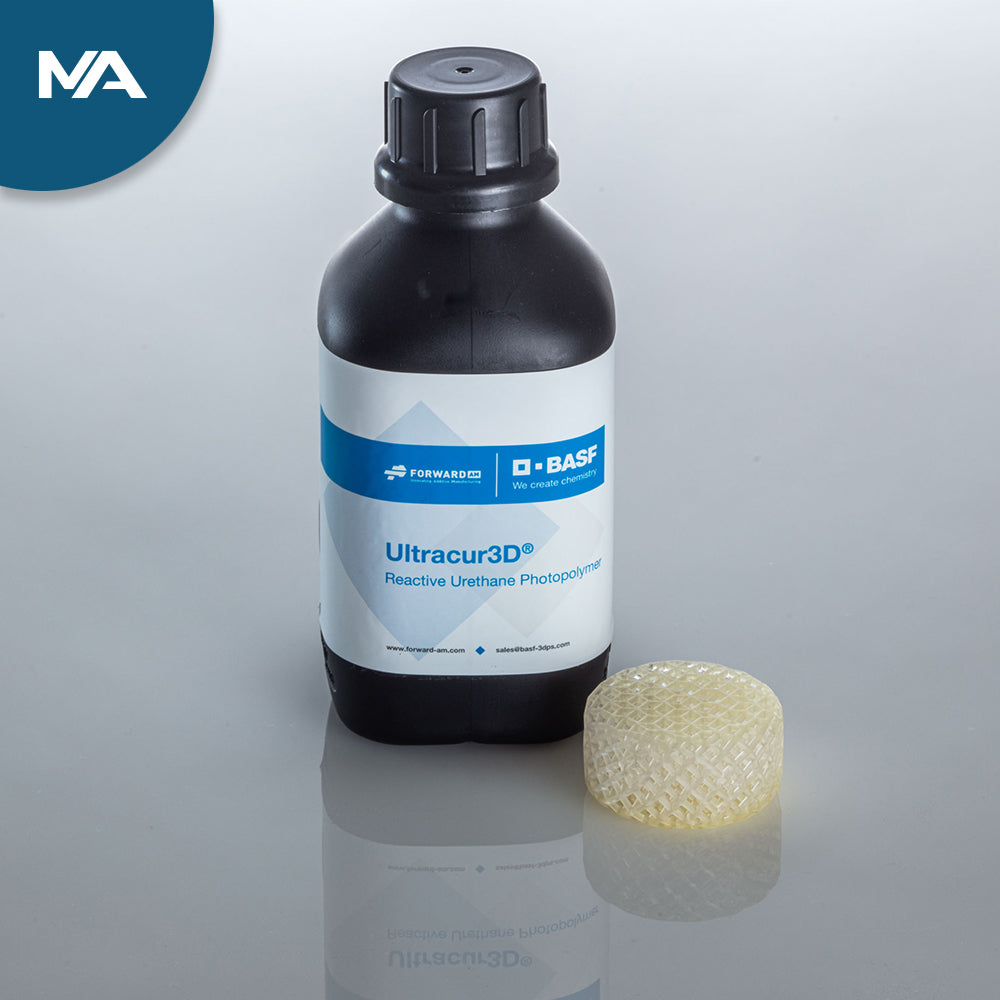

Ultracur3D® FL 60 from Forward AM is a well-balanced reactive urethane photopolymer for flexible applications that offers exceptional flexibility with high tear strength. It provides high softness (Shore 60 A) and excellent handfeel, while maintaining long-term color stability.
The advantages in brief
- Low hardness (Shore 60 A)
- Excellent tactile sensations
- Very stable light white color
Example applications
- Footwear
- Functional prototyping
- Padded padding
- Flexible grip
Material properties
- Rebound Resilience: 11%
- Tear resistance (Graves): 9 N/mm
- Elongation at break: 90%
- Hardness: 60 A
Ultracur3D® FL 60 rebound behavior

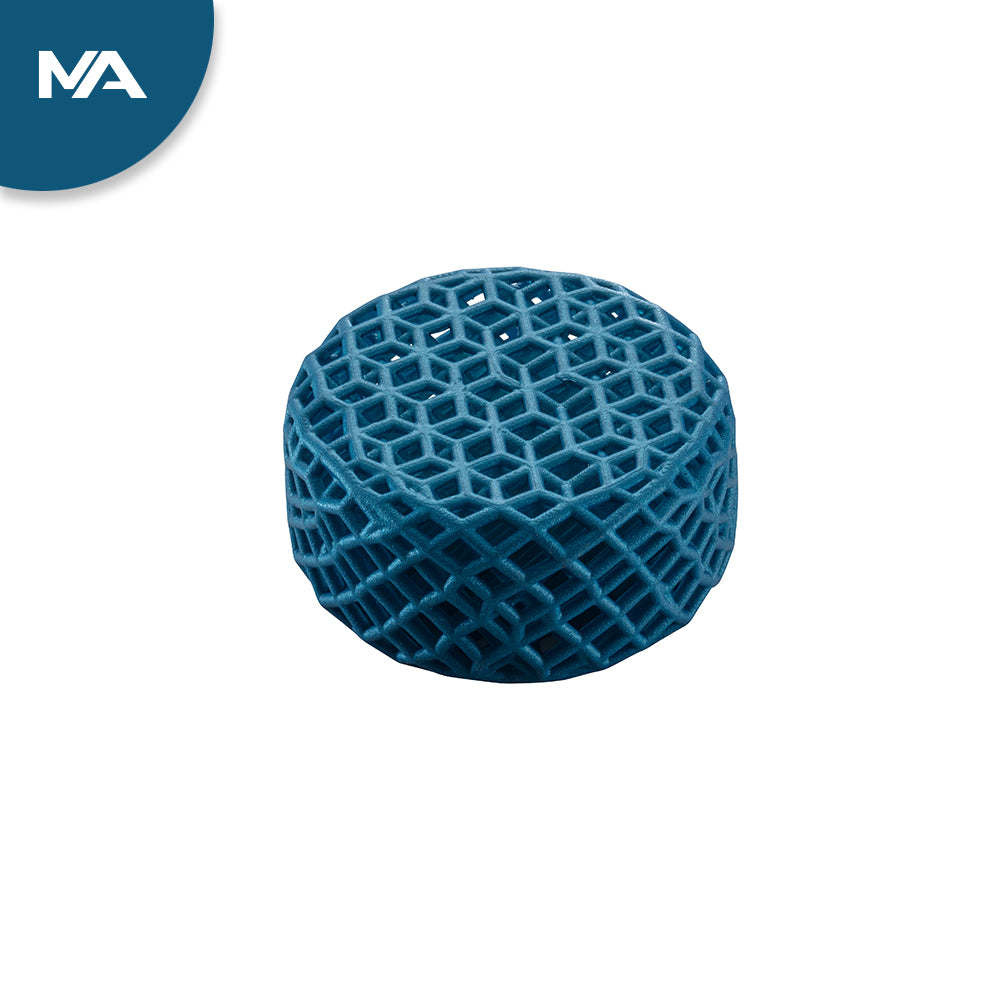

- High-speed video of a drop tower test of a steel ball (~130 g) onto a lattice structure (60x60x22 mm³) from a height of 0.95 m
- The Ultrasim® material model can also be used to simulate flexible materials
- Depending on the energy dissipation of the material, the Ultrasim® material model can be adjusted to reflect the correct rebound behavior
