Descrizione
Flexible resin with optimal strength, rebound and medium hardness (Shore 77 A)

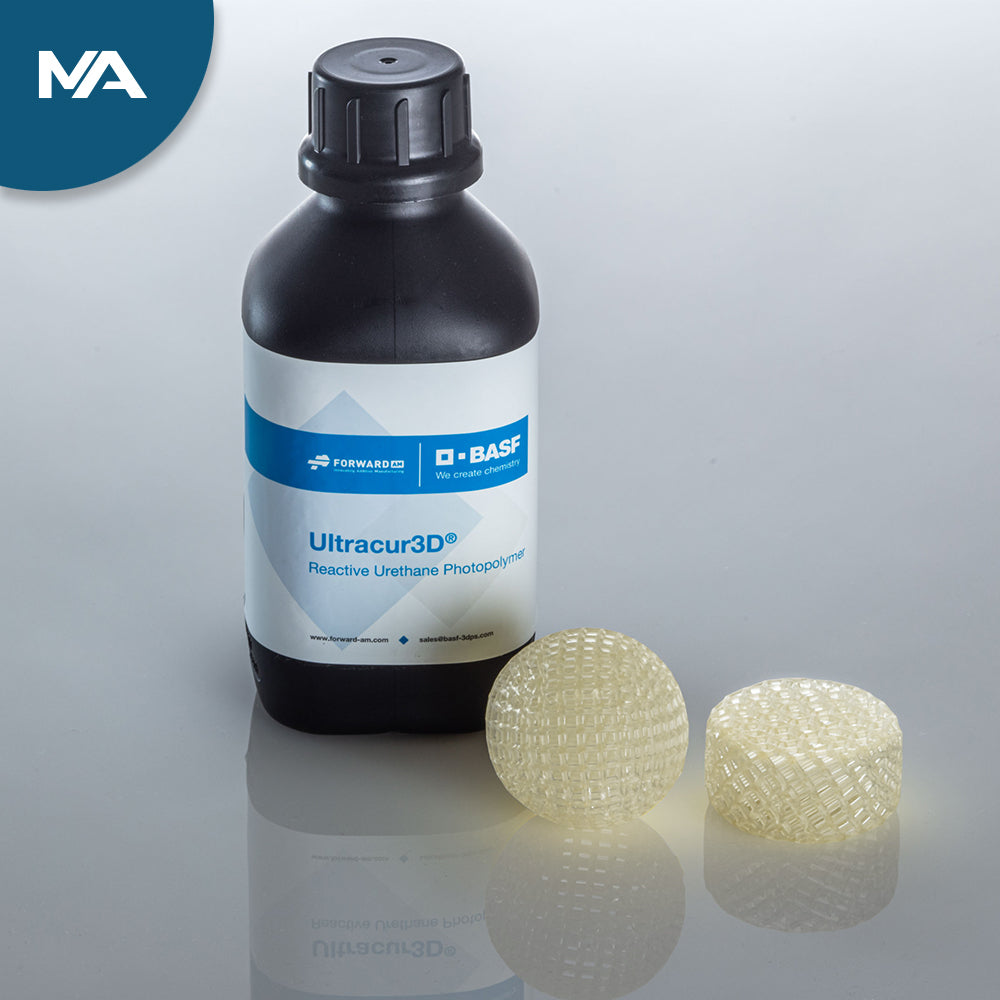

Ultracur3D® EL 150 from Forward AM is a highly versatile reactive urethane photopolymer for highly elastic applications that offers medium softness (Shore 77 A). It provides an optimal combination of high tensile strength, good elongation at break, and long-term rebound.
The advantages in brief
- Medium hardness (Shore 77 A)
- Optimal combination of high strength, elongation at break and rebound
Example applications
- Footwear
- Prototyping
- Padded padding
- Flexible grip
Material properties
- Rebound Resilience: 28%
- Tear strength (Graves): 14 N/mm
- Elongation at break: 182%
- Hardness: 77 A

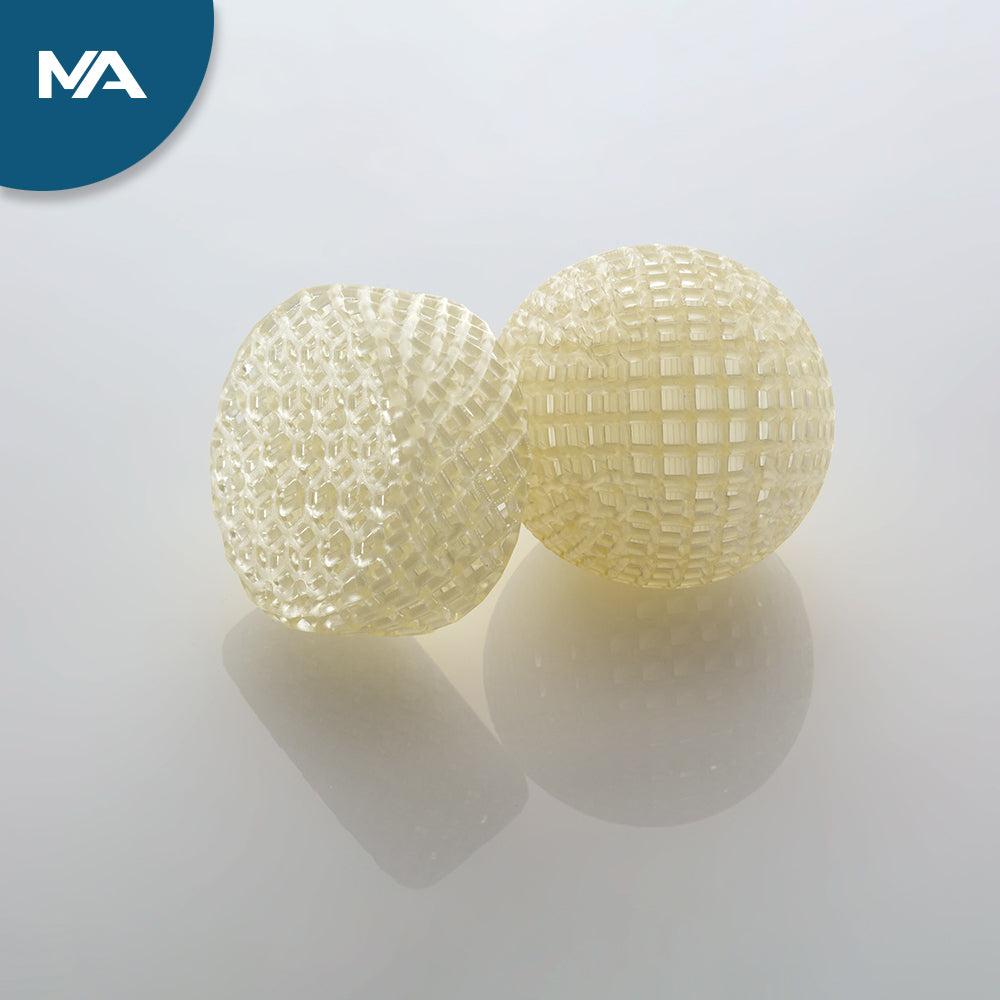

Ultracur3D® EL 150 rebound behavior
- High-speed video of a drop tower test of a steel ball (~130 g) onto a lattice structure (60x60x22 mm³) from a height of 0.95 m
- The Ultrasim® material model can also be used to simulate flexible materials
- Depending on the energy dissipation of the material, the Ultrasim® material model can be adjusted to reflect the correct rebound behavior
